DOUBLE_NOR_GATE

Published:2009/7/16 4:55:00 Author:Jessie | From:SeekIC

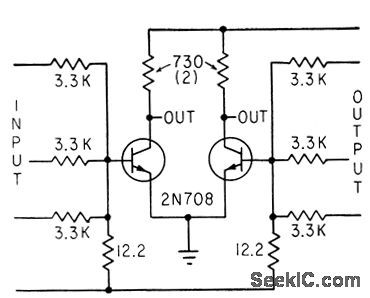

Pulse repetition rate is 1Mc, fanin is 3, and fanout is up to 6, with 30-mw dissipation for 7-v supply.-Double NOR Gate for Dense Packaging, Electronics, 36:12, p 100.
