DISTANCE_MARK_GENERATOR_1

Published:2009/7/17 4:32:00 Author:Jessie | From:SeekIC

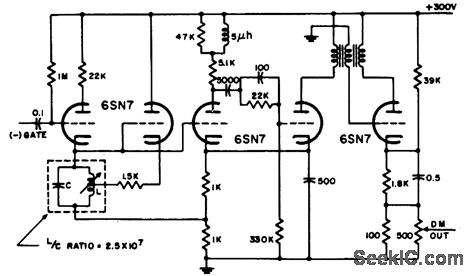

Uses switched Hartley oscillator, mvbr-type trigger shaper, and parallel-triggered blocking oscillator to generate distance marks in airborne search radar. RLC unit is switched to change mark spacting.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N8-1.
