DIODE_PAIRS

Published:2009/7/15 23:15:00 Author:Jessie | From:SeekIC

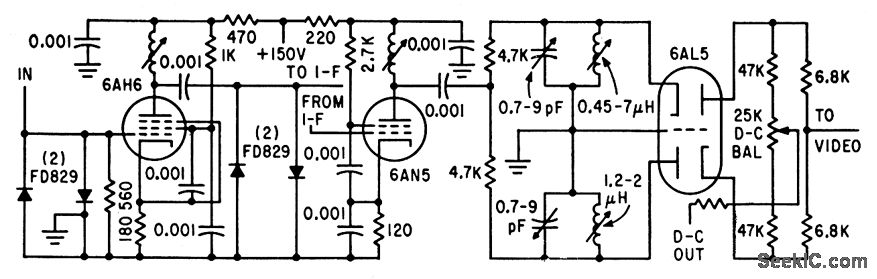

High-speed silicon diode pairs in two-stage limiter for telemetry, measuring, aft systems, and f-m systems give 5% linearity over 6-Mc bandwidth. Associated discriminator uses two single poles resistively coupled to driving tube.-High-Speed Diodes Make Limiting Smooth, Electronics, 35:27, p80.
