DELAYED_OUTPUT_PULSE

Published:2009/7/16 4:56:00 Author:Jessie | From:SeekIC

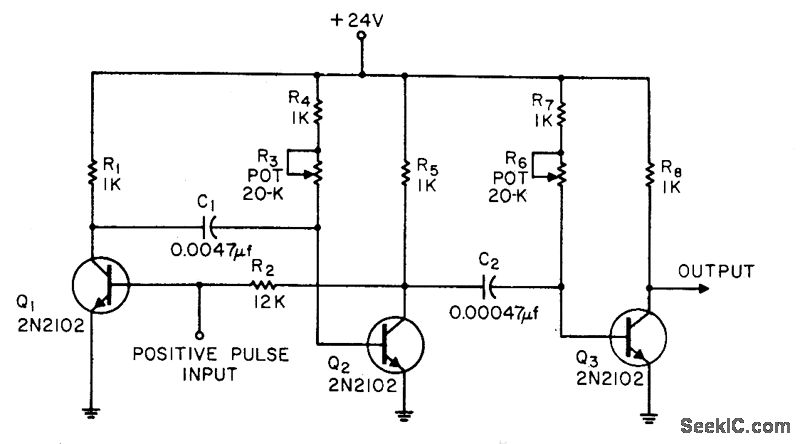

Only three transistors are required to generate output rectangular pulse that is delayed a predetermined time after arrival of input pulse. Delay time is determined by C1, R3, and R4, and is about 10 microsec for values shown. Output pulse width is also about 10 microsec. -T. R. Ferrara, Delayed Pulse Generator, EEE, 13:10, p 71
