Comparator_with_split_supply_and_logic_output

Published:2009/7/24 4:43:00 Author:Jessie | From:SeekIC

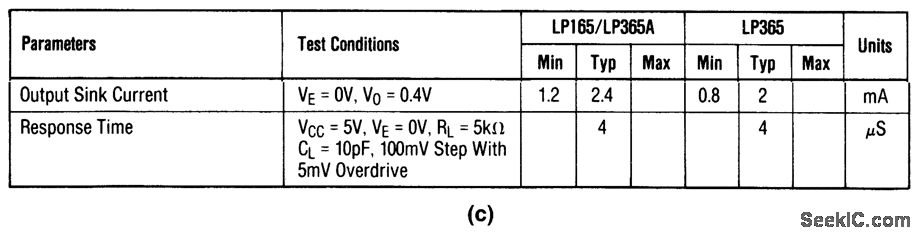

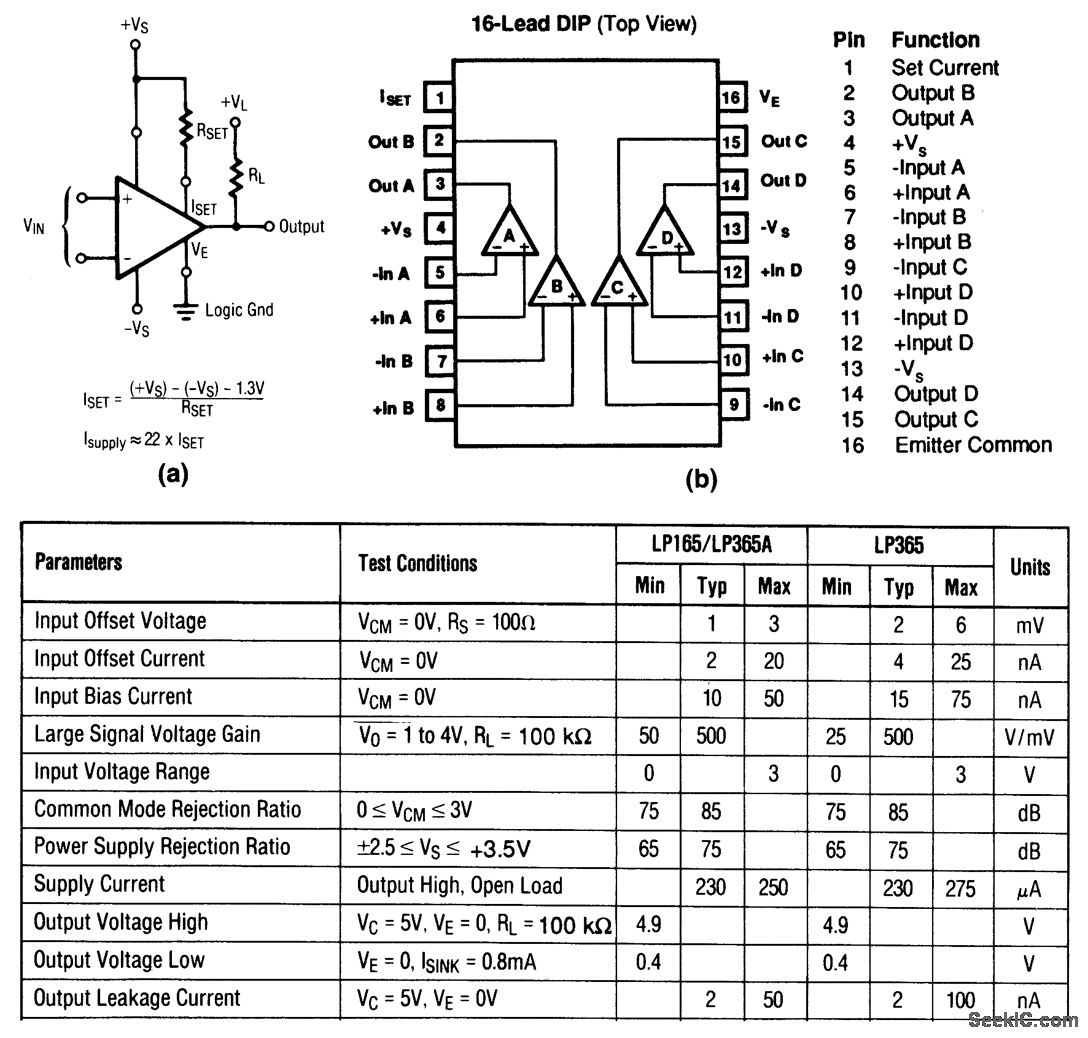

Fig. 15-24 This circuit shows an LP165/365 connected for a split supply, and a logic (TTL) output. Figures 15-24B and 15-24C show the pin connections, and electrical characteristics, respectively. Raytheon Linear Integrated circuits 1989, p. 5-34, 5-36, 5-40.
