Comparator_with_TTL_supply_and_TTL_output

Published:2009/7/24 4:44:00 Author:Jessie | From:SeekIC

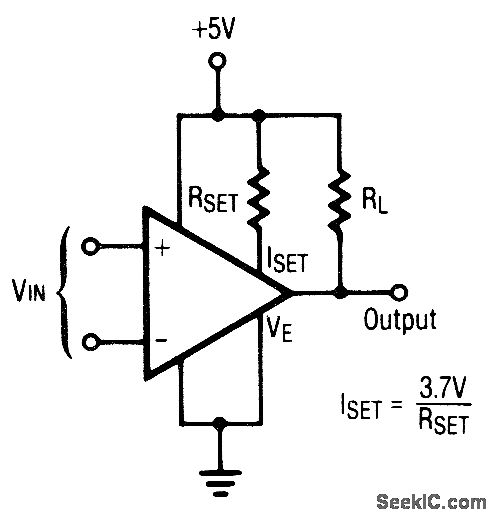

Pig. 15-25 This circuit shows an LP165/365 connected for a TTL supply and a TTL output. Figures 15-24B and 15-24C show the pin connections, and electrical characteristics, respectively. Raytheon Linear Integrated Circuits 1989, p. 5-40.
