CURRENT_LIMITING_SUPPLY_WITH_REFERENCE_AMPLIFIER

Published:2009/7/20 21:41:00 Author:Jessie | From:SeekIC

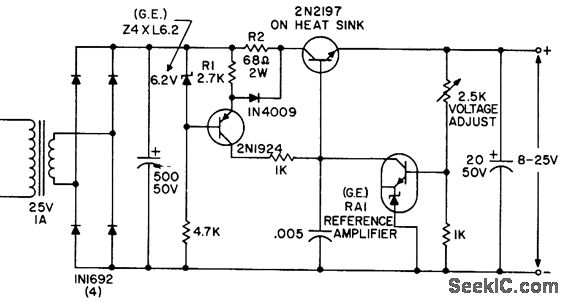

Variable 8 to 25-v supply limits output to 100 mc for protection against short-circuits. Regulation is 0.02% for line voltages from 105 to 130 v.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 232.
