CRO_SWEEP_TRIGGER

Published:2009/7/16 20:22:00 Author:Jessie | From:SeekIC

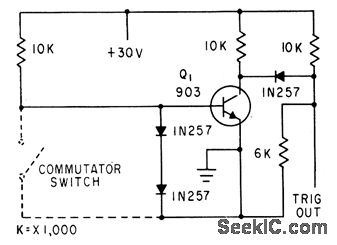

Base of Q1 is grounded once during each revolution by commutator segment of gyro balancer, to make circuit produce sharp pulse that triggers oscilloscope sweep.-F. W. Kear, Electronic System for Balancing Gyro Wheels, Electronics, 33:43, p 82-85.
