CONSTANT_Q_FROM_1_CPS_TO_10_KC

Published:2009/7/17 9:47:00 Author:Jessie | From:SeekIC

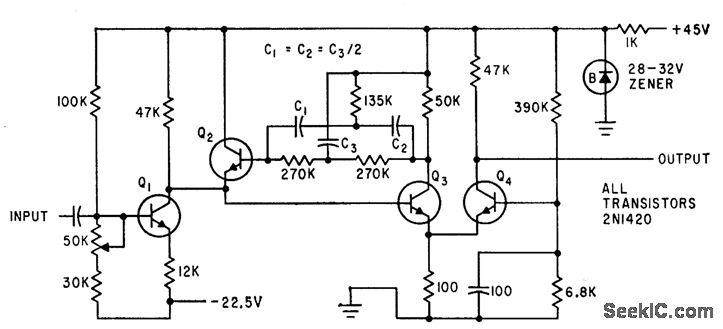

Symmetrical parallel-T R-C rejection filter in negative feedback loop of amplifier gives Q of 28 over frequency range, for frequency dependent noise measurements. Gain is about 5, and maximum output is about 5 V rms. –R. E. Hobson and L. Colcagno, Narrow Pass-Band Amplifier with Parallel-T Network, Electronics, 34:33, p 68.
