COMMON_HOT_LEAD_REGULATOR

Published:2009/7/17 3:25:00 Author:Jessie | From:SeekIC

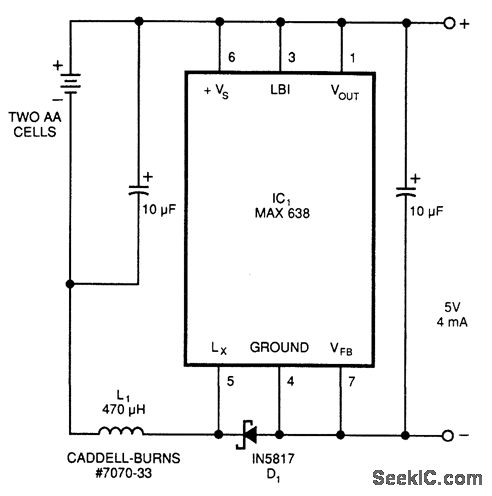

This circuit derives 5 Vdc from 2-AA cells-even at their end-life voltages of 1.05 V, and is approximately 80% efficient, providing 5 V at 4 mA from 2.1 V at 11 mA. IC1 is manufactured by Maxim Integrated Products, Inc.
