CLOCK_FOR_REGULATED_SUPPLY

Published:2009/7/11 2:00:00 Author:May | From:SeekIC

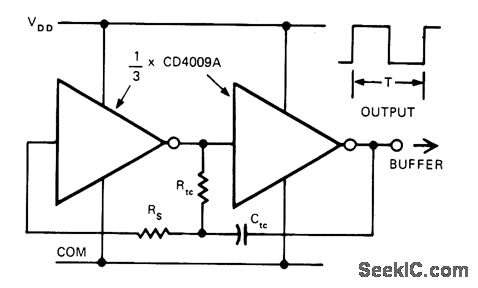

Single RCA CD4009A serves as clock generator and mono for driving regulated power supply having fold-back current-limiting protection. Rtc and Ctc are maior frequency-determining components. RS should be made equal to or greater than 2Rtc, Article gives equation for period T of oscillator, which ranges from about 2.2 to 2.5 times Rtc Ctc.-J. L. Bohan, Clocking Scheme Improves Power Supply Short-Circuit Protection, EDN Magazine, March 5, 1974, p 49-52.
