CIRCUIT_BREAKER_TRIPPER

Published:2009/7/16 21:21:00 Author:Jessie | From:SeekIC

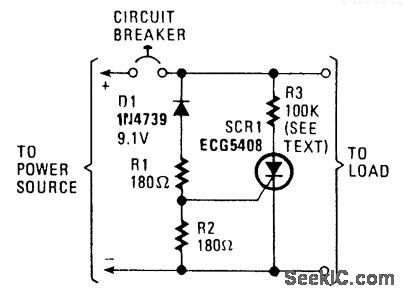

This tripper is designed to protect against overvoltages. D1 conducts over 9.1 V and triggers SCR1. R3 is chosen to draw enough current to trip the breaker.
