CHARGER_CONTROL_WITH_REGULATED_D_C_REFERENCE

Published:2009/7/16 4:24:00 Author:Jessie | From:SeekIC

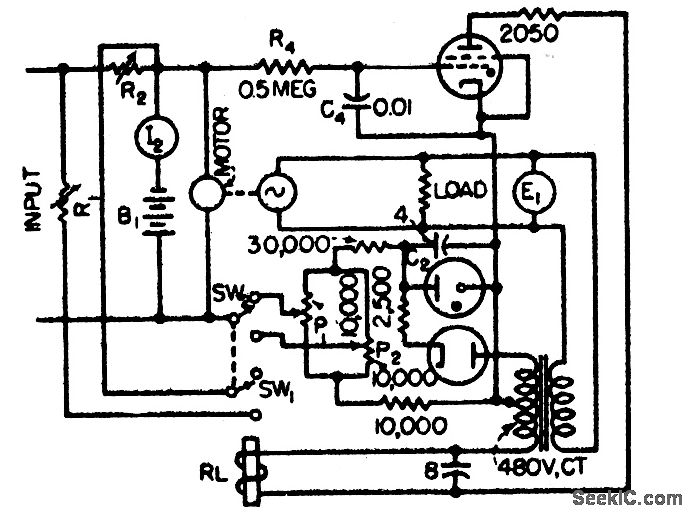

Eliminates need for separate reference battery. Control fires thyratron to pull in or out and initiate charging cycle when battery voltage drops.-V. Zeluff and J. Markus, Electronics Manual for Radio Engineers, McGraw-Hill, N.Y., 1949, p 545.
