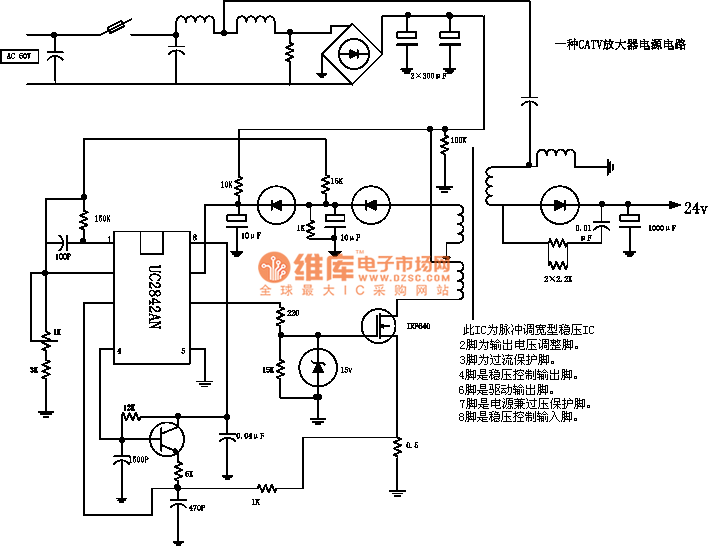

CATV amplifier power circuit

Published:2011/3/21 22:43:00 Author:muriel | Keyword: CATV amplifier, power circuit, UC2842AN | From:SeekIC

The IC is pulse width modulation regulated IC 2 pin is output voltage adjustable regulator feet3 pin is over-current protection feet4 pin is output voltage control feet6 pin is driver output feet7 pin is power and over-voltage protection feet8 pin is regulated control input feet
