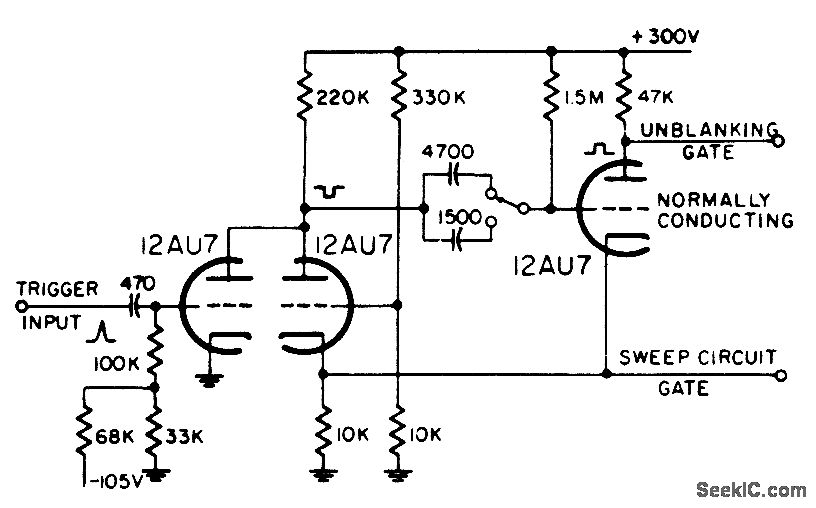

CATHODE_COUPLED_MAIN_GATE_MVBR_1

Published:2009/7/17 3:34:00 Author:Jessie | From:SeekIC

Provides positive unblanking gate. Used in radar to provide gate during which display sweep is generated. Capacitor switching provides choice of pate lengths.-NBS, Handbook Preferred Circuits Navy Aeronoutical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N10-2.
