Battery charger indicator based LM393

Published:2013/3/18 21:00:00 Author:Ecco | Keyword: Battery charger indicator | From:SeekIC

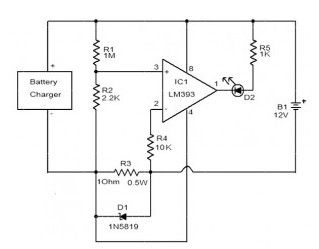

The circuit above willmakeyoursimplebatterychargerlook sophisticated. This circuit is a charging indicator forbatterycharger. Its usedtocheckwhether thebatteryis chargingornot.VoltagecomparatorLM393 ICis the heartofthis Battery charger indicator circuit. D1LEDstays litwhenthere areat least 25milli-amps of currentwhich flowsto the battery. This circuit isdesignedspecifically for12Vbatterywith aload currentof1A.With a littlemodifying component values​​,load currentand voltagecan be changed.
