Battery Level Monitor Circuits

Published:2013/12/4 21:39:00 Author:lynne | Keyword: Battery Level Monitor Circuit | From:SeekIC

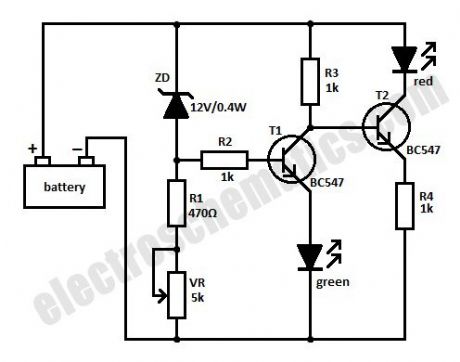

This simple battery level monitor circuit can indicate the charging process in 12 Volt Lead Acid battery or Tubular battery. The status of LED indicates whether the battery is accepting charge or not. It also indicates the full charge condition. The battery monitor circuit can be incorporated in any battery charger like 6, 9, 12 volt etc. The only change needed is replacement of the Zener ZD with appropriate value. That is for 6 volt charger use 6.1 volt Zener and for 9 volt charger it should be 9.1 volt Zener. Battery Level Monitor Circuit The circuit is based on the switching of two NPN transistors (BC547) to drive the corresponding LED. Zener diode ZD is connected to the base of T1 so as to switch on T1 when the Zener conducts. This happens only when the battery voltage is above 12 volts. Green LED lights when the battery voltage is normal or battery attains full charge. Resistor R1 and Preset VR adjust the base bias of T1 for smooth switching. When T1 conducts, base of T2 will be pulled to ground and T2 turns off and Red LED extinguishes. When is connected to the battery before charging the LED indications will be If the battery voltage is above 12 volts (that is the normal terminal voltage of 13.8), Zener conducts and Green LED lights and Red LED remains off.If the battery voltage is below 12 volts, Zener remains non conducting and Green LED remains off and Red LED lights.When the battery is connected to the charger, and if the battery is accepting charge, Green LED goes off and Red LED remains on. When the battery attains full charge, Green LED lights and Red LED goes off. If the battery is not accepting charge, Green LED never lights, even after the prolonged charging. This indicates that the battery is not attaining the normal terminal voltage above 12 volts.
