INPUT_PULSE_UNBALANCES_BRIDGE

Published:2009/7/16 5:45:00 Author:Jessie | From:SeekIC

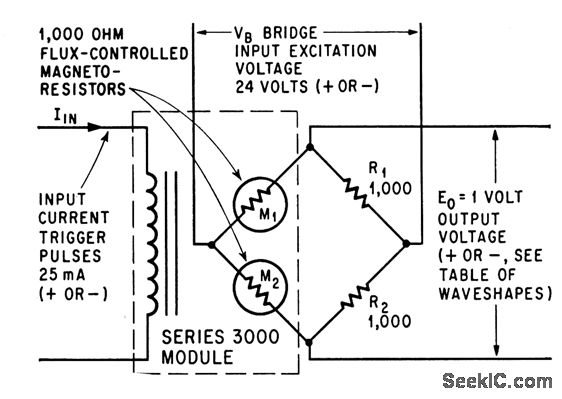

Trigger pulse causes opposite resistance variations in magnetoresistors M1 and M2, to give 1 v output for 25-ma pulse current.-R. M. Gitlin, Magnetoresistors Isolate Load From Control Circuit, Electronics, 38:3, p 60-61.
