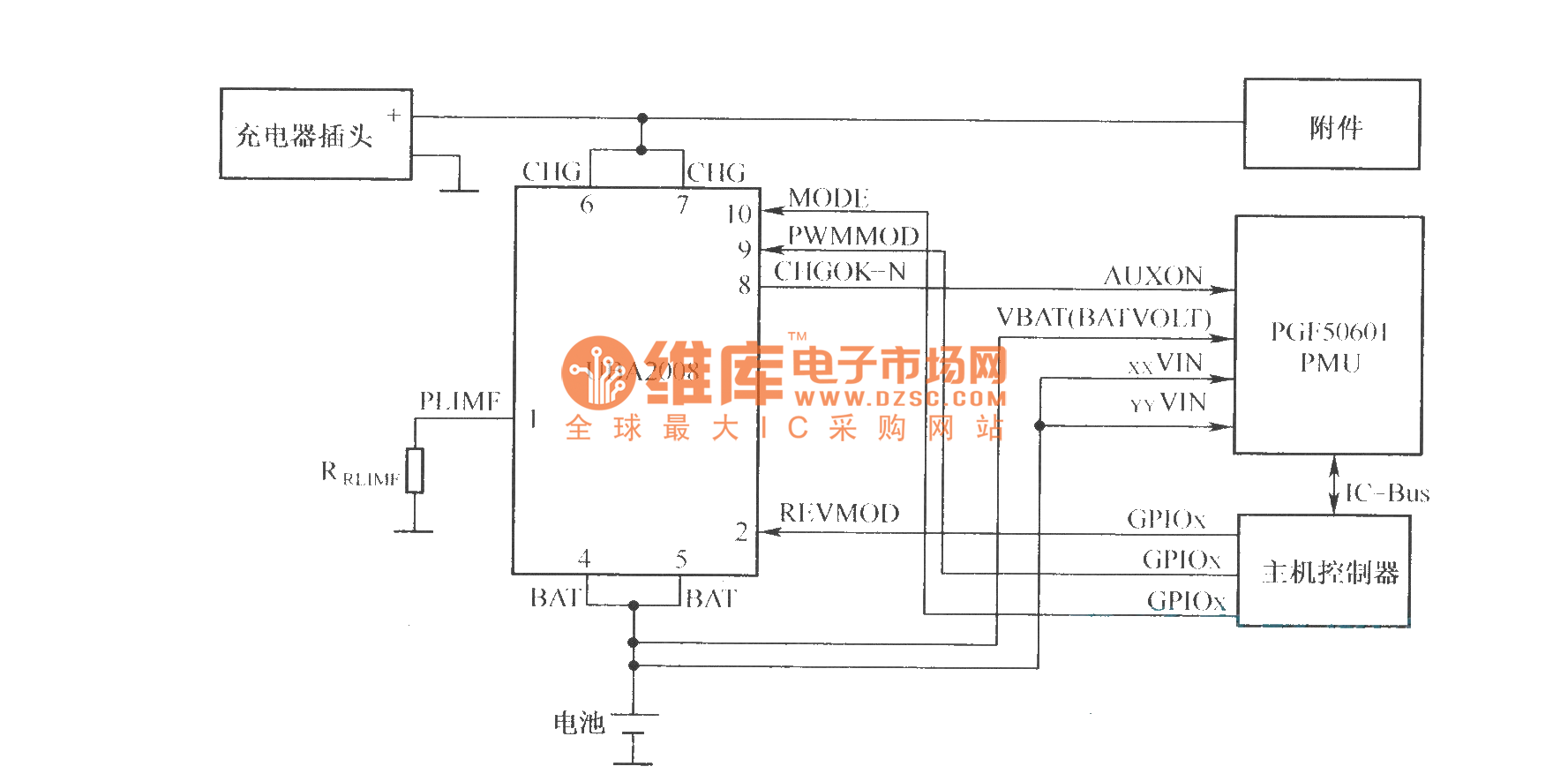

Charging circuit using UBA2008 charging switch chip

Published:2011/11/30 20:28:00 Author:May | Keyword: Charging circuit , charging switch chip | From:SeekIC

UBA2008 is the charging intelligent management chip with pulse way produced by Philips. The device integrates a low- resistance power switch which can be used for charge controlling of single cell Li-Ion or three NiMH cells or in the pre- charging or fast charging modes. It has current limiting , overvoltage protection, thermal protection and electrostatic discharge (ESD) protection, and it integrates the security mechanisms in battery charging process to ensure its safe operation.
