3A battery charger

Published:2013/5/2 21:11:00 Author:muriel | Keyword: 3A , battery charger | From:SeekIC

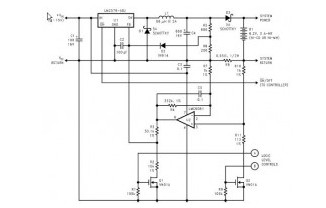

This design is a 3A battery charger intended for use with 5-cell Ni-Cd or Ni-MH battery packs (but can be modified to suit other numbers of cells). The circuit includes automatic shutoff that occurs when the battery temperature rises 10°C above ambient.This battery charger was developed specifically for applications using either Nickel-Cadmium (Ni-Cd) or Nickel-Metal Hydride (Ni-MH) batteries that will accept a 3A fast-charge rate, and provides automatic shutoff of the high-current charge when the battery is full.The circuit use LM2576.
