195_V_FROM_27_V_BATTERY

Published:2009/7/13 3:43:00 Author:May | From:SeekIC

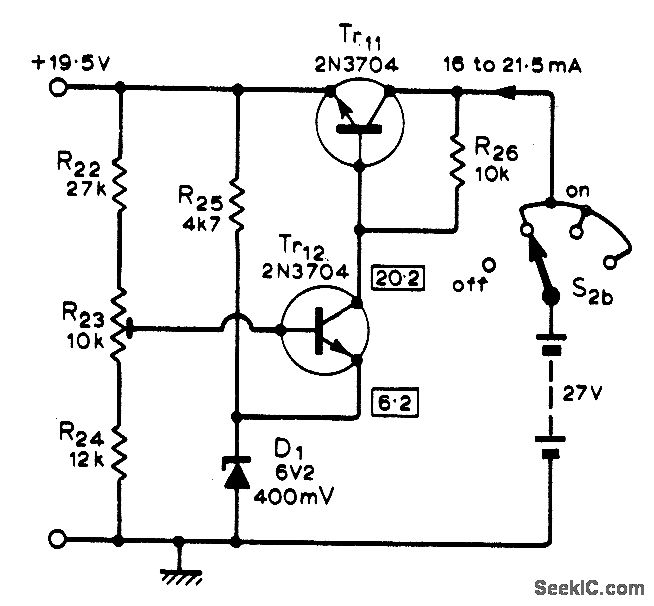

Used to provide precise voltage levels required by portable trigger unit designed to fire up to five different flash units at equal intervals that may range from 11 ms to 11 s. Article gives all circuits.-R. Lewis, Multi-Flash Trigger Unit, Wireless World, Nov.1973, p 529-532.
