Basic_V_F_converter

Published:2009/7/24 1:48:00 Author:Jessie | From:SeekIC

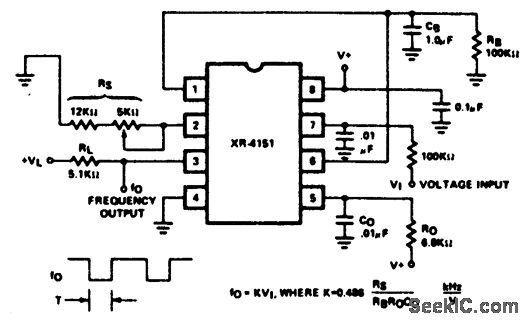

Pig. 12-31 This circuit uses an XR4151 and a few external components to form a basic V/F converter. Using the values shown, input voltage is from 0 to + 10V, and output frequency is from 0 to 10 kHz. Full-scale frequency is trimmed by RS. EXAR Corporation Databook 1990 p 5-123.
