Basic_F_V_converter_with_cascade_transistor

Published:2009/7/23 23:57:00 Author:Jessie | From:SeekIC

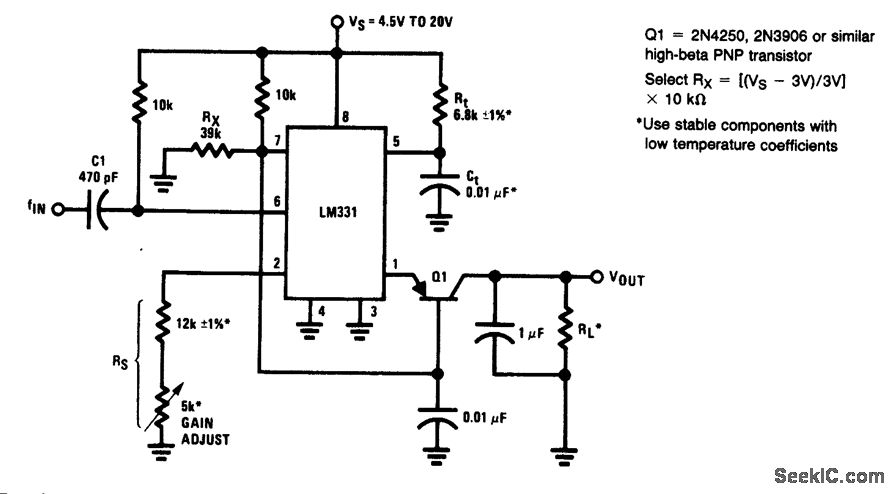

Fig. 12-22 This circuit is similar to that of Fig. 12-19, but with a cascade transistor at the output to improve nonlinearity to 0.006% (typical). Again, set the 5-kΩ gain adjust for 10-V output with a 10-kHz input. National Semiconductor, Linear Applications Handbook 1991 p 1299.
