Basic_F_V_converter_1

Published:2009/7/24 1:51:00 Author:Jessie | From:SeekIC

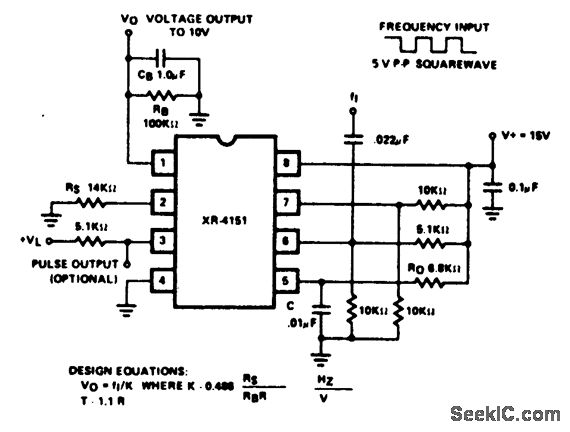

Fig. 12-33 This circuit uses an XR4151 and a few external components to form a basic F/V converter. Using the values shown, the input frequency is from 0 to 10 kHz, and output voltage is from 0 to 10 V. It might be necessary to square up the input signals. Also, the values for the input differentiator can be altered to accommodate square-wave inputs of different amplitudes and frequencies. EXAR Corporation Databook, 1990.p. 5 124.
