Balanced_dual_tracking_regulator_

Published:2009/7/23 22:53:00 Author:Jessie | From:SeekIC

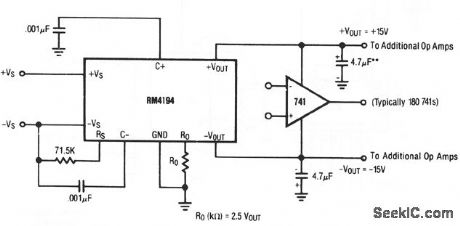

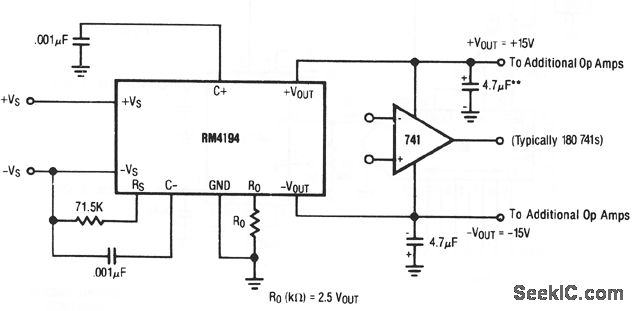

This circuit provides blanced output voltage that can be varied between±50 and ±42 mV by selection of Ro,with load currents of 200mV. This circuit is particularly useful for op-amp (chapter 10) applications,
