BROADBAND_NE602_SINGLE_ENDED_OUTPUT_CIRCUITS

Published:2009/7/17 2:51:00 Author:Jessie | From:SeekIC

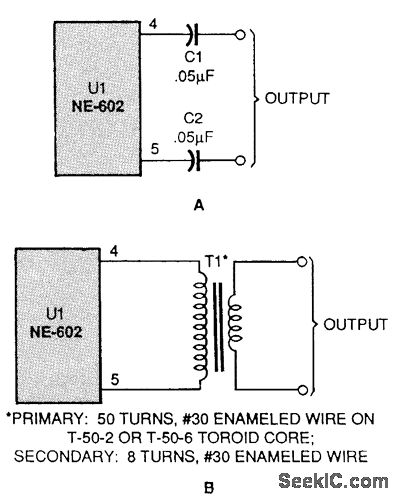

Here are two single-ended output circuits. A capacitor output is shown in A and a single-ended transformer output is shown in B.
