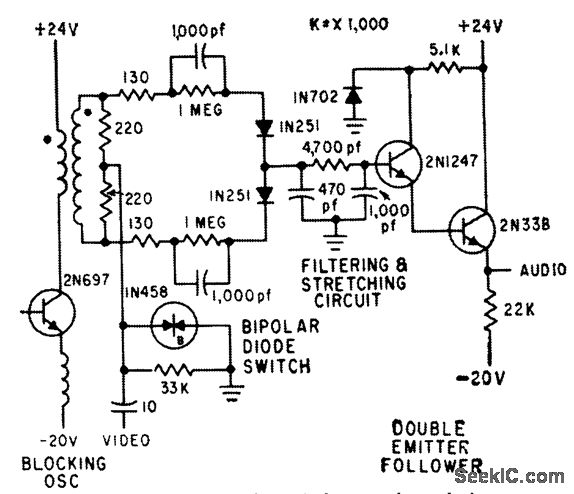

BOXCAR_DETECTOR

Published:2009/7/19 21:05:00 Author:Jessie | From:SeekIC

Diodes conduct during range gate interval of 0.2 microsec in portable doppler radar, to connect video signal to filter circuit.-J. Scott, D. Randise, and R. P. Lukacovic, Portable Radar Traces Battlefield Deployment, Electronics, 33:12, p 67-70.
