BASIC_12_V_CHARGER

Published:2009/6/29 22:05:00 Author:May | From:SeekIC

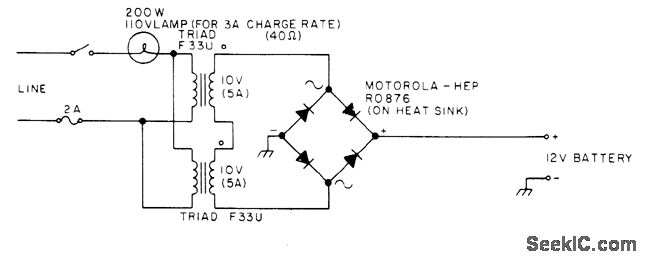

Uses 200-W lamp as current-limiting resistor in transformer primary circuit. Serves in place of older types of chargers using copper-oxide or tungar-bulb rectifiers．-H.Olson, Battery Chargers Exposed, 73 Magazine， Nov.1976, p 98-100 and 102-104.
