BAND_GAP_PRECISION_REFERENCE

Published:2009/7/15 20:58:00 Author:Jessie | From:SeekIC

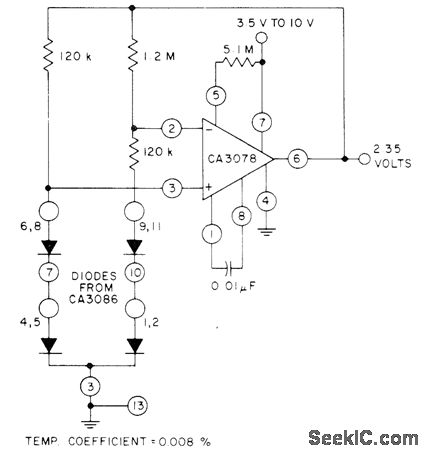

Uses diodes from CA3086 array and CA3078 micro-power opamp to develop 2.35-V precisely controlled output reference that is almost indepen-dent of temperature. –″Circuit Ideas for RCA Linear ICs,″RCA Solid State Division, Somerville, NJ, 1977, p 18.
