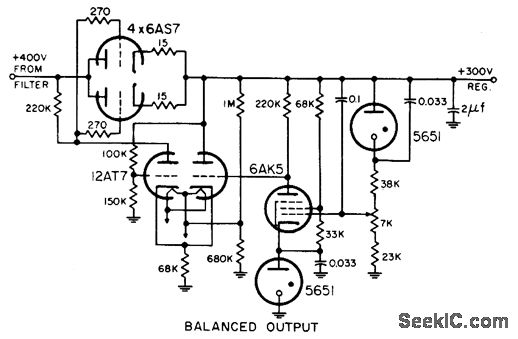

BALANCED_OUTPUT_PENTODE_TWIN_TRIODE

Published:2009/7/20 21:39:00 Author:Jessie | From:SeekIC

Arrangement gives high gain, approaching 10,000, along with more ripple reduction than is generally required.-NBS, Hand-book Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N2-4.
