BA6247N-an motor-driven integrated circuit

Published:2011/5/13 1:18:00 Author:Borg | Keyword: motor-driven, integrated circuit | From:SeekIC

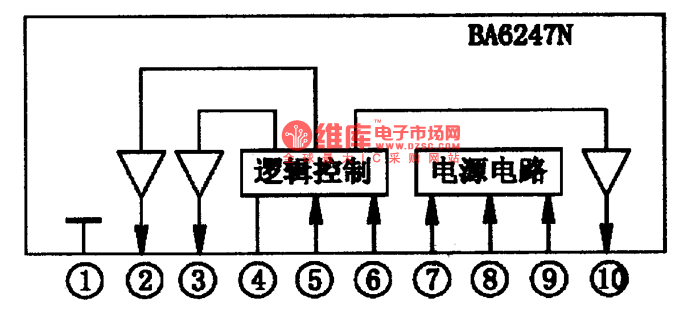

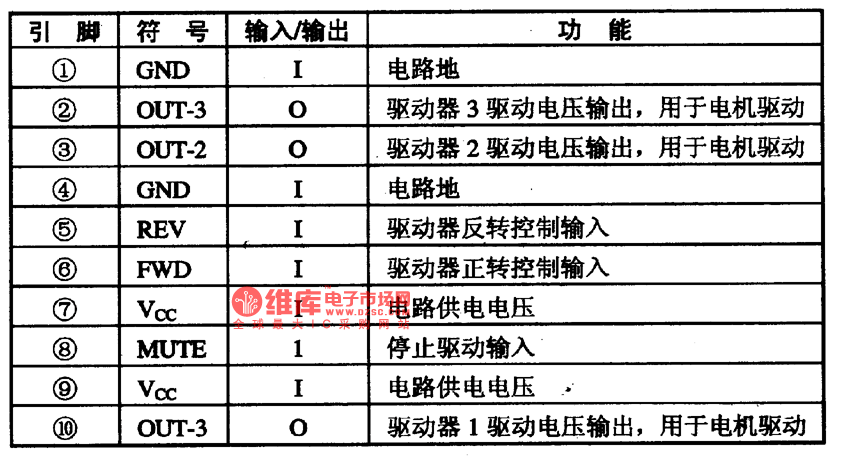

BA6247N is an motor drive integrated circuit of 2-channel 2-way control, which is produced by Toyo, Janpan. It is often used in CD, VCD,SVCD and DVD players as drivers of motors and rolling discs.1.the internal circuitBA6247N contains logic control circuits and drive circuits, whose internal circuit is as shown in Figure 1. Figure 1 the internal circuit of BA6247N 2. Pin functionsBA6247N is in 10-lead single in-line package, whose pin functions are listed in Table 1.
