BA6235F-The stable integrated circuit of D.C motors

Published:2011/5/17 20:49:00 Author:Borg | Keyword: integrated circuit D.C, motors | From:SeekIC

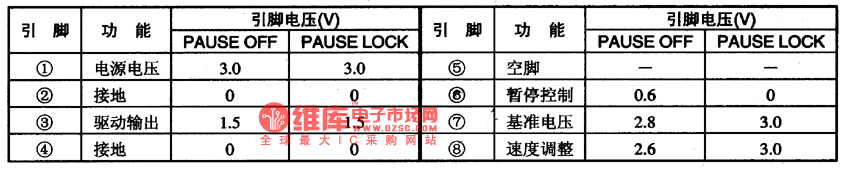

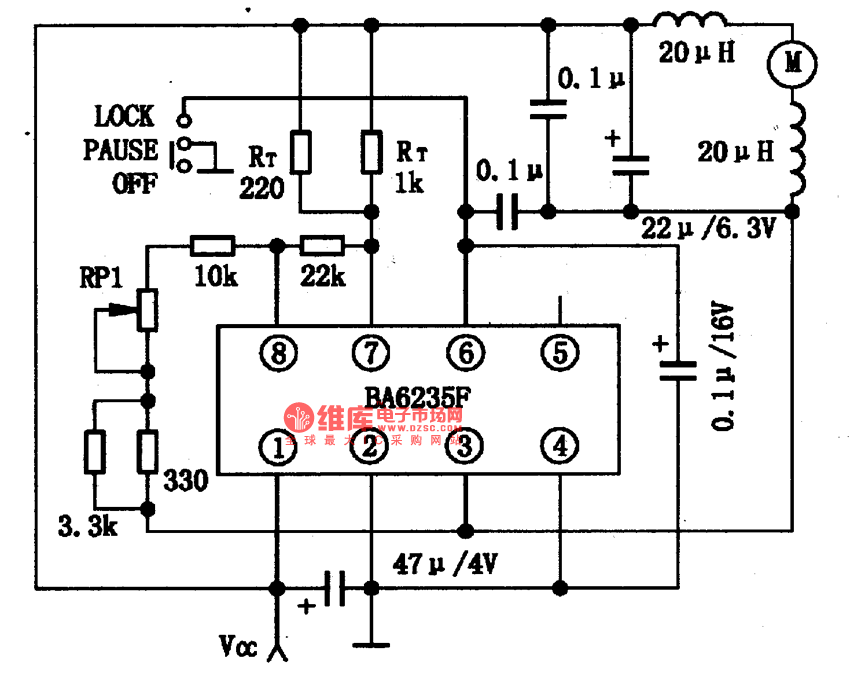

BA6235F a stable integrated circuit of D.C motors produced by Toyo Corp.,Japan, which is always used in Walk-man and radios.1.the typical application circuit of BA6235FThe application circuit of BA6235F chips is as shown in Figure 1. 2.pin functions and data of BA6235F BA6235F is a stable integrated circuit of D.C motors, which is in flat 8-lead dual-line package, and its pin functions and data is listed in Table 1. 3.notes for fault detecting and repairing If we want to judge whether BA6235F is malfunctioning, we can test the values of pinning voltages and compare them with common values.
