Automatic_night_light_to_discourage_prowlers_or_burglars

Published:2009/7/17 4:53:00 Author:Jessie | From:SeekIC

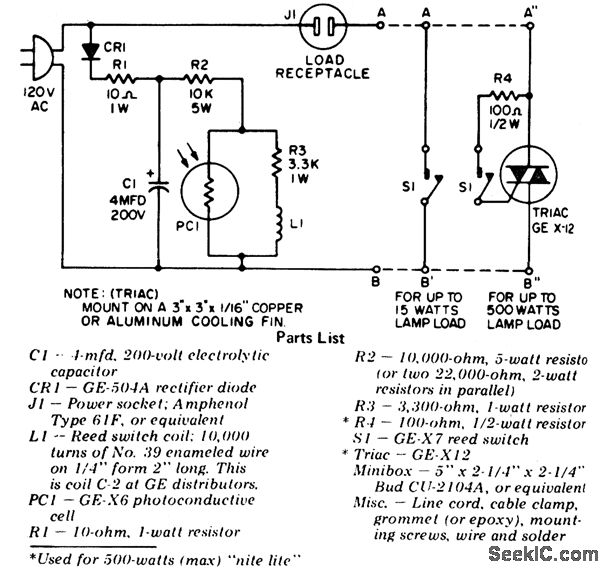

Automatic night light to discourage prowlers or burglars. One of two circuits can be built as shown in the schematic, depending on the requirements. For small loads, 15 watts, the reed switch can directly control the light (courtesy General Electric Company).
