Adjustable_dc_dc_step_down_converter5A

Published:2009/7/25 1:22:00 Author:Jessie | From:SeekIC

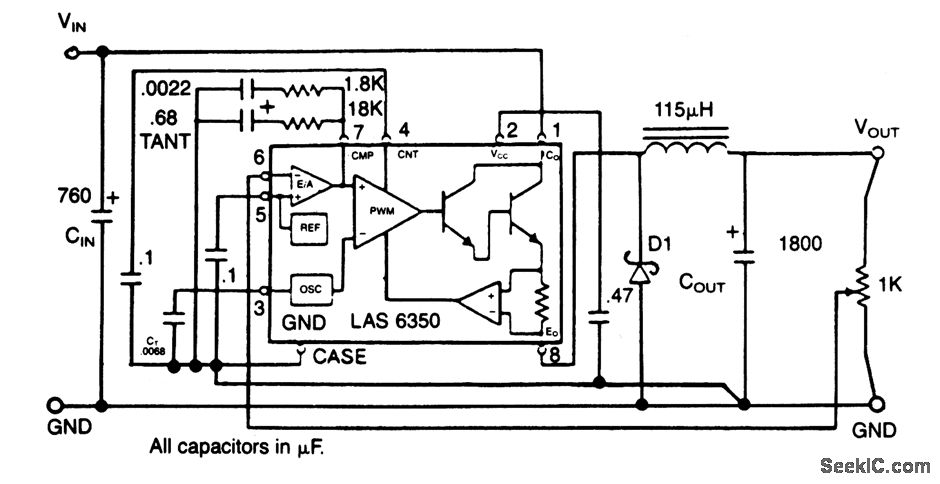

This circuit is similar to that of Fig.4-11,except that this circuit can be operated with inputs of 17.7 to 22.3V.
