A Power Supply For Use With Transistors

Published:2013/6/6 20:38:00 Author:muriel | Keyword: Power Supply , Transistors | From:SeekIC

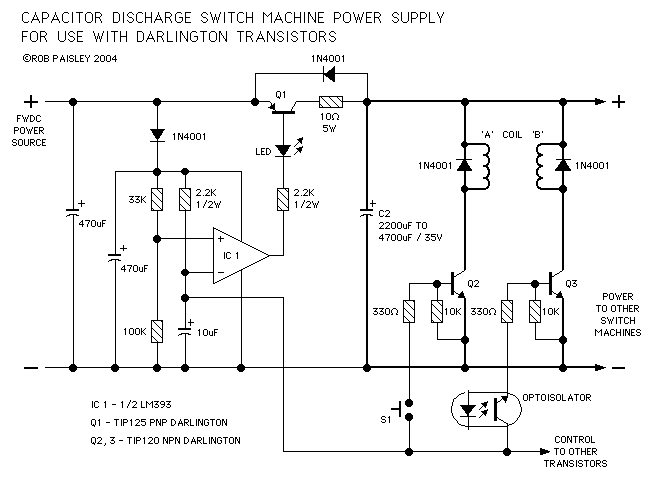

The circuit is a variation of the SCR compatible power supply. This version can be used if transistors were used to control switch machines. The only significant differences between this and the SCR compatible circuit is the removal of the time delay before recharging begins and the higher control current that would be required for transistors as opposed to silicon controlled rectifiers. As with the SCR compatible circuit this version cannot be used with pushbuttons in the coil circuit as the charging current would not be cutoff when the button is pushed.
