A_C_LINE_REGULATOR

Published:2009/7/20 4:26:00 Author:Jessie | From:SeekIC

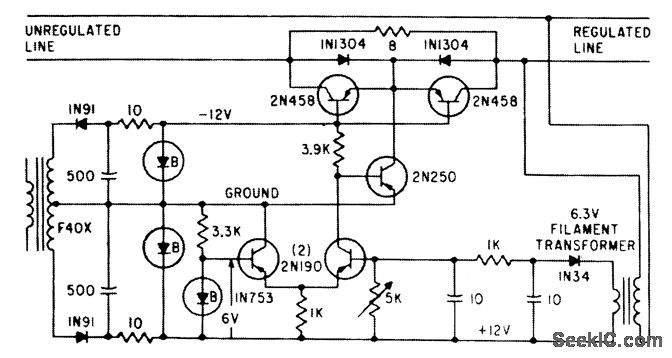

Five-transistor circuit uses breakdown diodes to regulate voltage inputs between 113 v and 140 v to within 0.5 v of 110 v for 2-amp load.-R. A. Grainer, Line Voltage Control Uses Zener Diodes, Electronics, 33:6, p 64.
