A 24 million - bit data circuit diagram

Published:2014/1/9 19:44:00 Author: | Keyword: A 24 million - bit data circuit diagram, | From:SeekIC

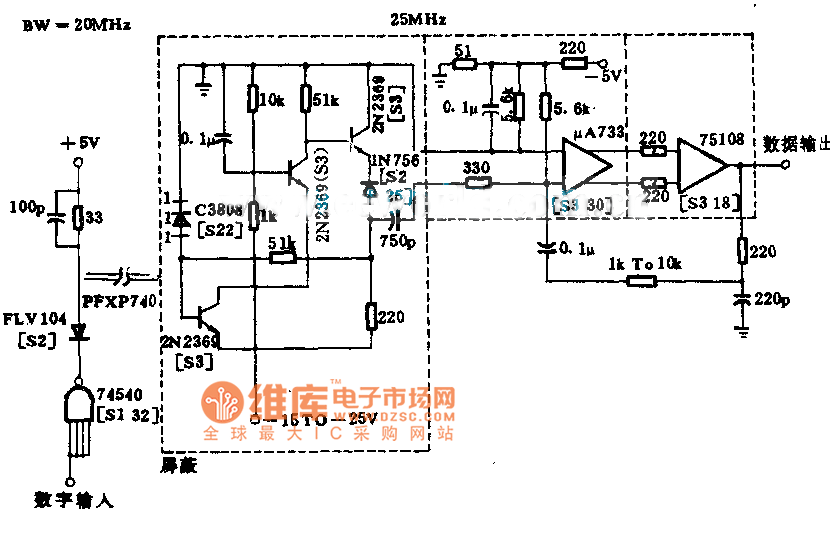

By improving the performance of the receiver, the digital output from the electric typewriter is a message on the far side of feed to the microprocessor, can achieve high data rate for square wave pulse. Pre set designed for use in a limited frequency range to compensate the noise, until about 20 MHZ, has uniform letter/noise ratio. In the demonstration device, the image method in visible light leds and photoelectric detector, at 19.2 cm (40 feet) long cable meet the requirements on its performance.
