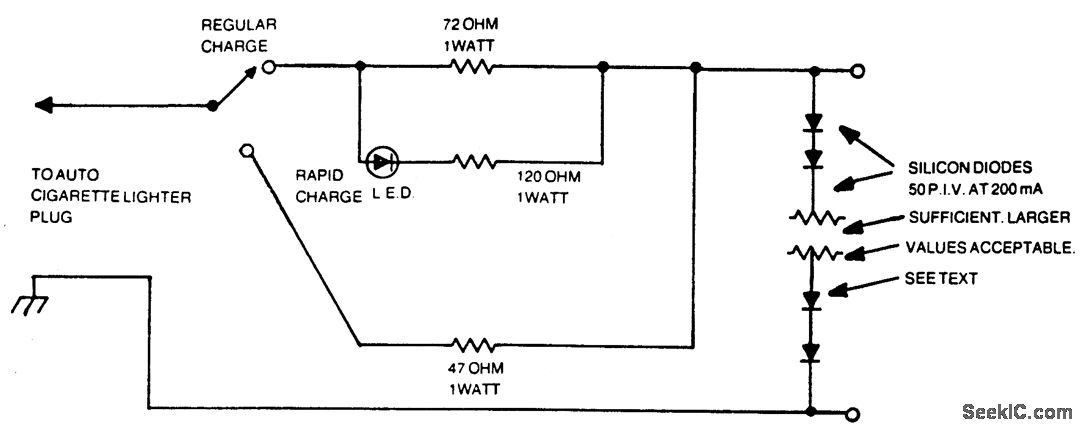

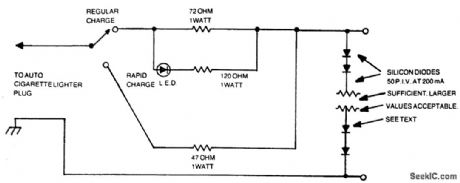

AUTOMOTIVE_CHARGER_FOR_NI_CAD_BATTERY_PACKS

Published:2009/6/24 22:16:00 Author:May | From:SeekIC

The number of silicon diodes across the output is determined by the voltage of the battery pack. Figure each diode at 0.7 volt. For example, a 10.9- volt pack would require 10.9/0.7 = 15.57, or 16 diodes.
