ANTICOINCIDENCE_DETECTOR

Published:2009/7/16 23:31:00 Author:Jessie | From:SeekIC

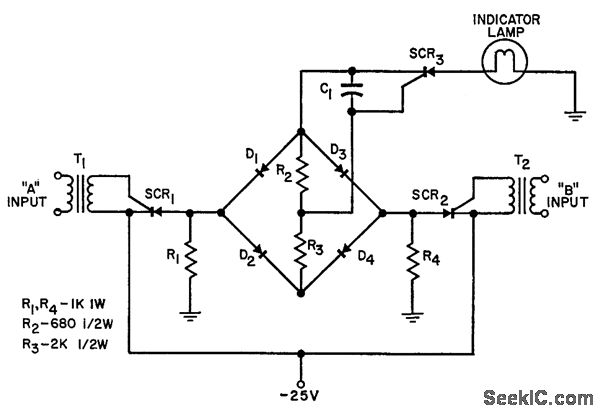

Gives indication whenever two input pulses are not coincident. Limit on smallest degree of anticoincidence that is detectable is determined by turn-on time of SCR’s, and is about 0.3 microsec for 2N1595 scr used, when C1 is omitted. Upper limit is set by C1, and can be several tenths of a second when C1 is 200 mfd. Circuit is reset by interrupting supply. Diodes are 1N691, and lamp is 1819.-J. T. Gatshal, Anti-Coincidence Detector, EEE, 10:9, p 28-29.
