ANALOG_VOLTAGE_SOURCE

Published:2009/7/21 4:43:00 Author:Jessie | From:SeekIC

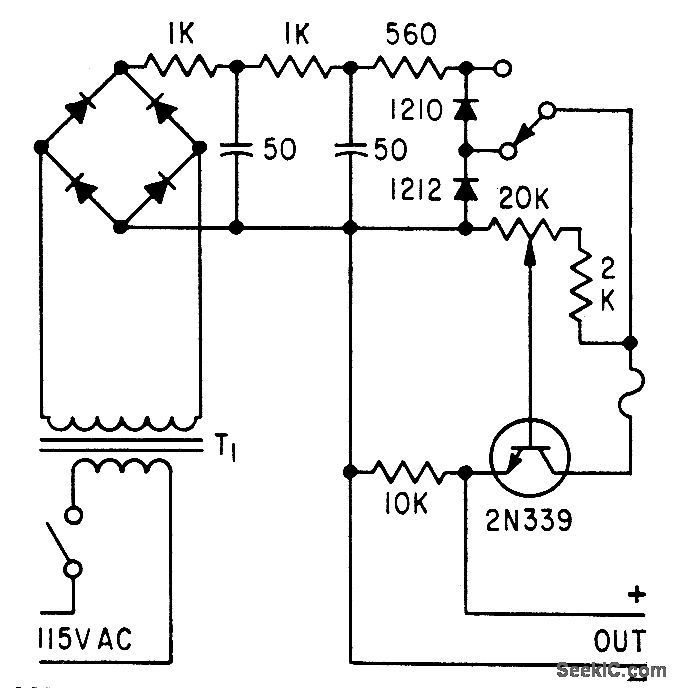

Consists of bridge-rectifier supply with R-C filtering and zener diode regulation, feeding control potentiometer that is isolated from load by grounded-collector transistor. Used as analog voltage source for computer circuit. –E. R. James, Semiconductors Provide Analog Voltage Source, Electronic, 31:33, p 96-100.
