AMPLITUDE_DISCRIMINATOR

Published:2009/7/16 3:50:00 Author:Jessie | From:SeekIC

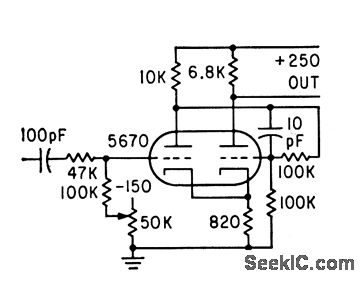

High-speed trigger with adjustable bias network and cathode-follower output serves as amplitude discriminator for tachometer that responds to pulses produced by gamma radiation sources on sealed-in rotating parts not directly coupled to input or output shafts of transmissions or turbines.-R. R. Bockemuehl and P. W. Wood, Unique Two-Channel Tachometer uses Radioisotopes, Electronics, 35:49, p 44-45.
