AMPLIFIER_PROTECTOR

Published:2009/7/17 2:34:00 Author:Jessie | From:SeekIC

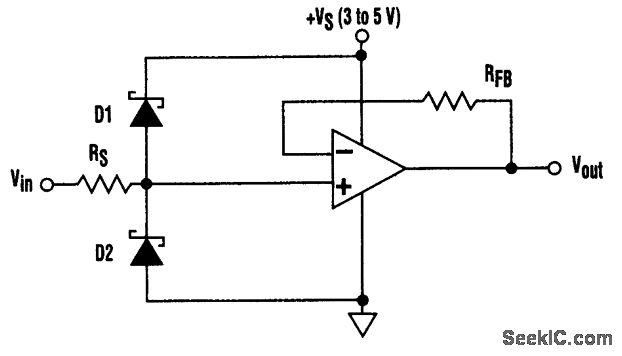

Unprotected amplifiers in noninverting, single-supply, voltage-follower stages might need external protection if input signals can exceed the rail voltages. Low-threshold Schottky diode clamps D1 and D2 provide safe clamping while RS limits the fault current.
