9_V_high_efficiency_controller_lower_power

Published:2009/7/24 3:17:00 Author:Jessie | From:SeekIC

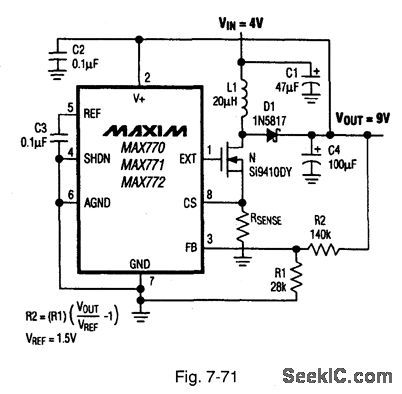

Figure 7-71 shows the MAX770/71/72 connected to provide 9-V output with a 4-V input. See Fig. 7-68 for component suppliers. These IC controllers are similar to the MAX1771 (Fig. 7-53), but with lower power capability. MAXIM NEW RELEASES DATA BOOk, 1995, P. 4-150.
