9_V_high_efficiency_controller

Published:2009/7/24 2:17:00 Author:Jessie | From:SeekIC

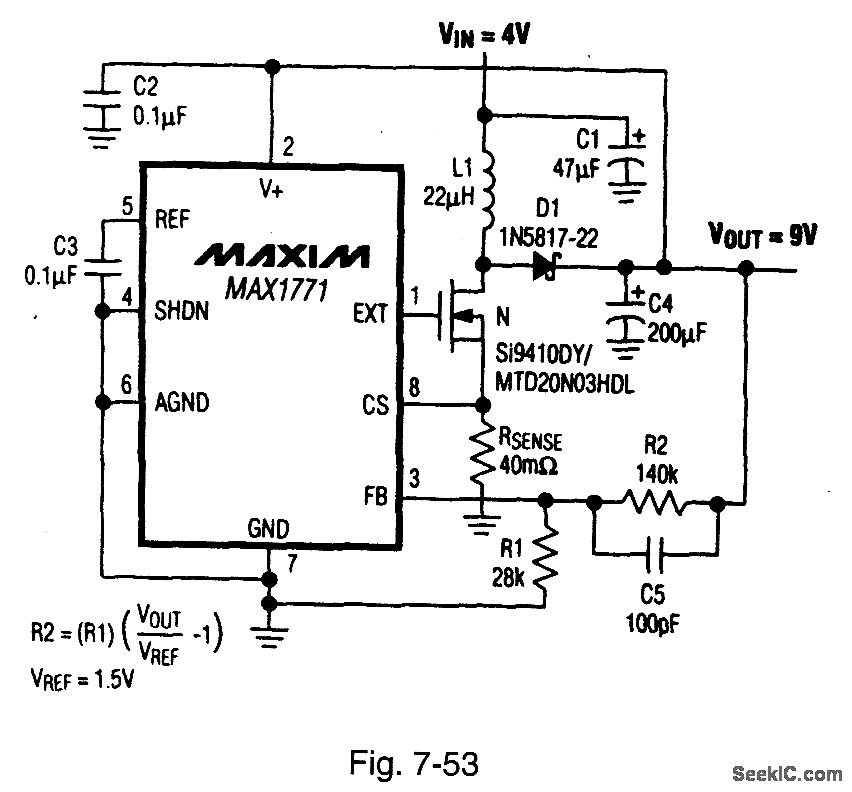

Figure 7-53 shows the MAX1771 connected to provide 9-V output with a 4-V input. See Fig. 7-51 for component suppliers.AXIM NEW RELEASES DATA BOOk, 1995.P4-20.
