96_MILLISEC_PULSE_STRETCHER

Published:2009/7/15 5:10:00 Author:Jessie | From:SeekIC

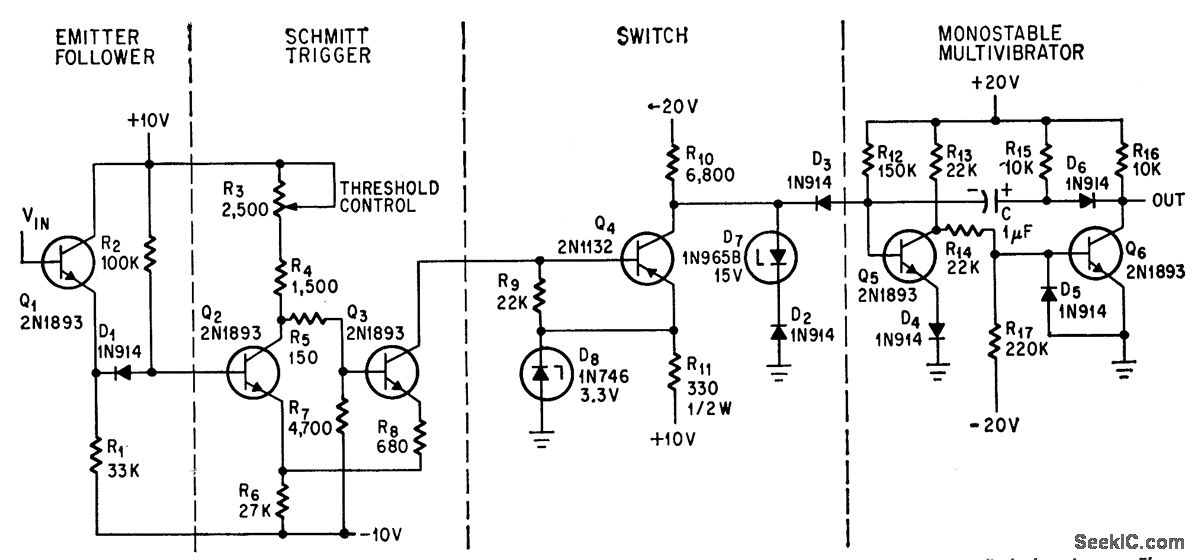

Monostable multivibrator stays on for 96 millisec after Schmitt trigger goes off, while C discharges through R12. -J. R. Giroux, Multi's Output Duration Controlled by Input, Electronics, 38:4, p 88-89.
