8_A_positive_adjustable_current_regulator

Published:2009/7/23 23:55:00 Author:Jessie | From:SeekIC

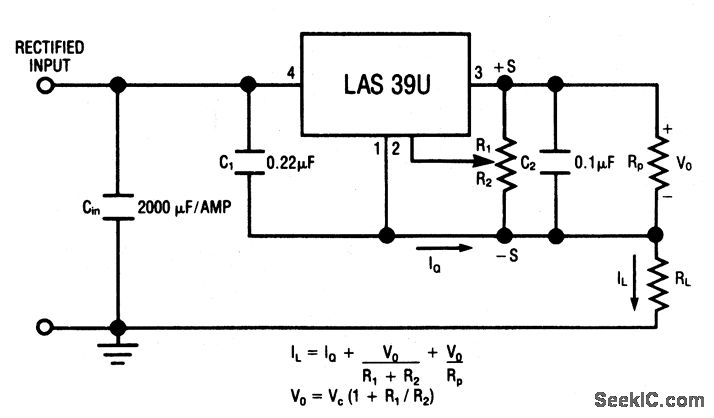

This circuit uses the LAS39U voltage-regulator IC (Fig. 7-51) as an adjustable-current regulator. Characteristics are shown in Fig. 7-50B, 7-50C, and 7-50D.
