8748_to_8251_interface

Published:2009/7/19 22:56:00 Author:Jessie | From:SeekIC

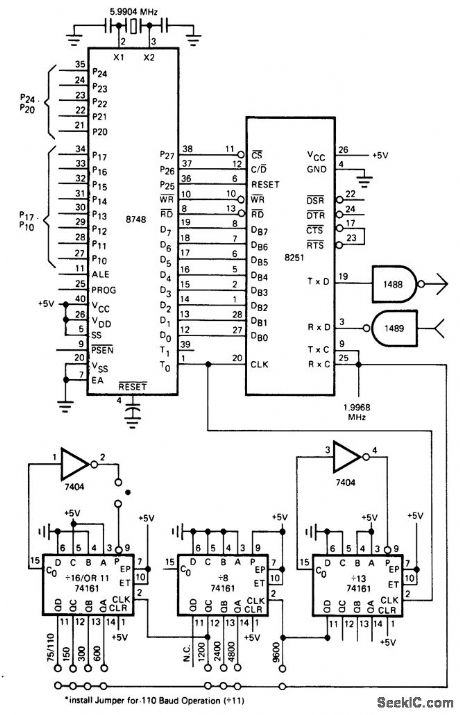

8748 to 8251 interface. The 8748 is an MCS-48 processor and the 8251 is a USART (courtesy Intel Corporation).
