80_DB_DYNAMIC_RANGE_AT_8_MC

Published:2009/7/15 23:16:00 Author:Jessie | From:SeekIC

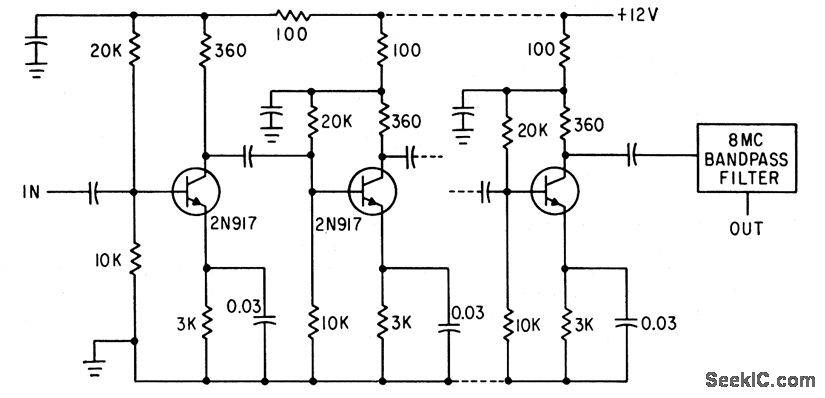

Uses five identical cascaded stages with filter to re store sinusoidal waveform. Phase-shill variations are only 10. Limits input signal by collector current cutoff only. Used in multichannel-tracking receiving system.-S. P. VV.Stranddorf, High-Frequency limiter Amplifier Solves Phase-Shift Problems, Electronics, 35:46, p 44-45.
