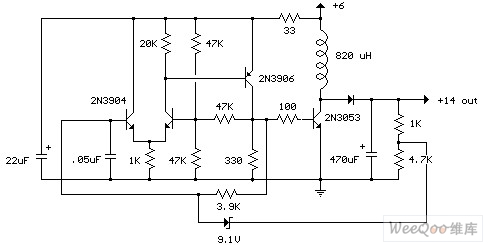

6V to 14V Booster Power Circuit of Discrete Device

Published:2011/6/6 23:38:00 Author:Michel | Keyword: Discrete Device, 6V to 14V, Booster Power Circuit | From:SeekIC

One schmitt trigger oscillator is used to drive the transistor and inductance energies stores in the inductance.The output voltage depends on load voltage and oltage regulator diode.This circuit's efficiency is about 80 %, and it also adopts the inductance with high Q value.
