65_V_REFERENCE

Published:2009/7/15 22:07:00 Author:Jessie | From:SeekIC

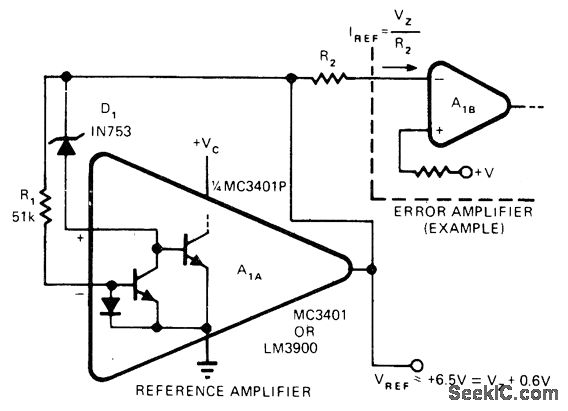

Reference amplifier uses mirror characteristic of noninverting input of current-mode opamp to determine zener current. Resulting voltage drop across zener provides, through R2, current reference for other or opamps or compensated voltage reference.-R. W Fergus, Use Current-Mode Op Amps in Reference Circuits, EDN Magazine, June 20, 1974, p 80 and 83.
